分支流程

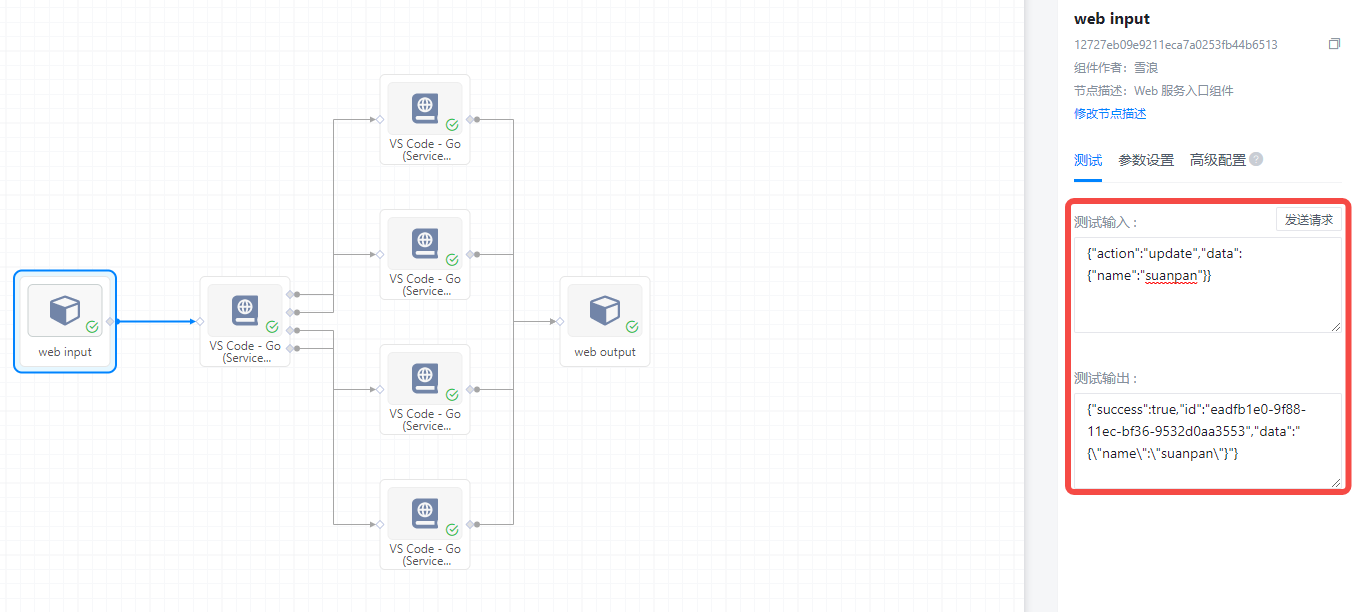

Step 1：如图构建流程

Step 2：流程控制

组件代码

package main

import (
    "encoding/json"
    "strconv"

    "github.com/xuelang-group/suanpan-go-sdk/suanpan/v1/app"
    "github.com/xuelang-group/suanpan-go-sdk/suanpan/v1/log"
    "github.com/xuelang-group/suanpan-go-sdk/suanpan/v1/stream"
)

func handle(r stream.Request) {
    log.Info("receive request data")
    outputData := r.InputData(1)

    m := make(map[string]interface{})
    _ = json.Unmarshal([]byte(outputData), &m)
    b, _ := json.Marshal(m["data"])
    action := m["action"].(string)
    outputData = string(b)

    r.Send(map[string]string{
        "out" + strconv.Itoa(indexOfActions(action)) : outputData,
    })
}

func indexOfActions(action string) int {
    arr := []string{"create", "read", "update", "delete"}
    for index, a := range arr {
        if a == action {
        return index + 1
        }
    }
    return -1
}

func main() {
    app.Run(handle)
}

输入

{
    "action": "create"|"read"|"update"|"delete",
    "data": {
        "name": "suanpan"
    }
}

Step 3：测试 Api
