算盘GPU配置【2021】

>>驱动下载地址：

官方：https://www.nvidia.com/en-us/drivers/unix/ 推荐：https://www.nvidia.com/content/DriverDownload-March2009/confirmation.php?url=/XFree86/Linux-x86_64/460.80/NVIDIA-Linux-x86_64-460.80.run&lang=us&type=TITAN

>>添加K8S节点GPU标识

kubectl label nodes xxx suanpan.xuelangyun.com/gpu=available

---

一、安装依赖和驱动：

a）如果启动了gdm则需要先停止

service gdm stop 2>null

b）安装gcc、dkms 以及对应内核版本的kernel-devel

yum -y install gcc dkms kernel-devel "kernel-devel-uname-r == $(uname -r)"

c）安装NVIDIA显卡驱动

sudo bash NVIDIA-Linux-x86_64-460.80.run

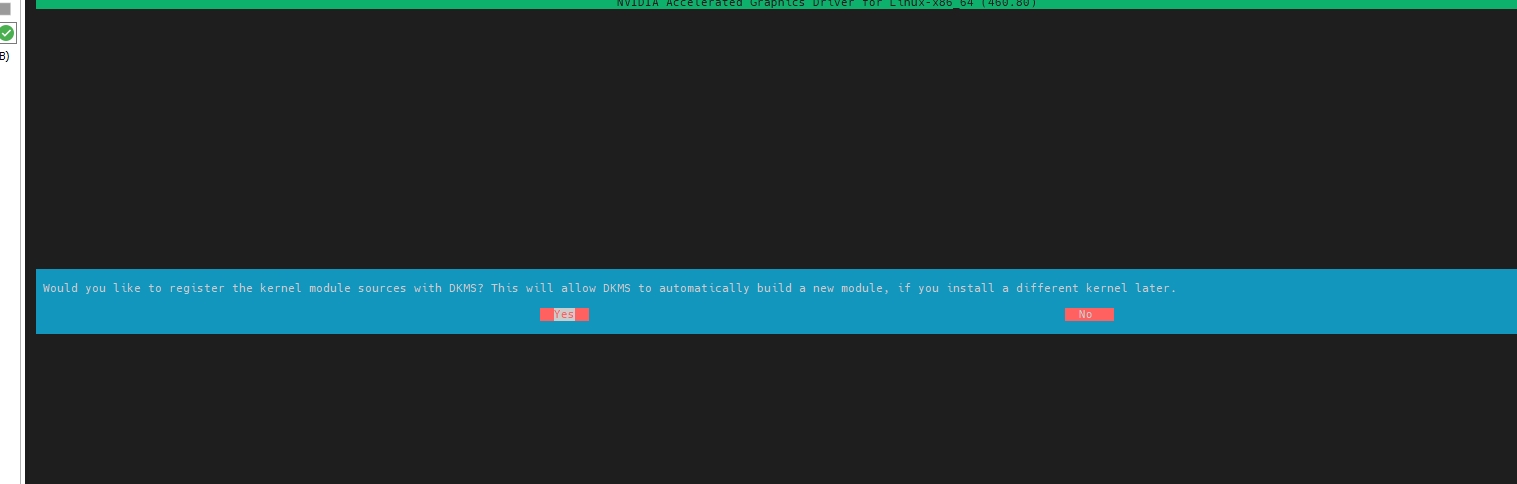

安装日志存储路径：/var/log/nvidia-installer.log 如果出现以下图示选择，选择 NO

d）安装nvidia-container-runtime

curl -s -L https://nvidia.github.io/nvidia-container-runtime/centos7/nvidia-container-runtime.repo | sudo tee /etc/yum.repos.d/nvidia-container-runtime.repo
sudo yum install nvidia-container-runtime

>>安装驱动常见问题

问题1）ERROR: Unable to find the kernel source tree for the currently running kernel……
这是由于没有安装Kernel模块（如果已安装依然提示，可以尝试重启几次服务器）

#1）查看内核版本
uname -r

#2）查看kernel版本列表
yum list |grep kernel

#3）更新yum源
yum -y update

#3）安装对应kernel版本
yum -y install kernel-devel "kernel-devel-uname-r == $(uname -r)"

问题2） …… Error! echo Your kernel headers for kernel 3.10.0-957.el7.x86_64 cannot be found at /lib/modules/3.10.0-957.el7.x86_64/build or /lib/modules/3.10.0-957.el7.x86_64/source……
这是由于安装的Kernel与内核版本不匹配（与问题1类似）
如若不存在对应版本则更换镜像源重新检索安装，或者网上搜索下载对应安装包手动安装
问题3）ERROR: The Nouveau kernel driver is currently in use by your system. This driver is incompatible with the NVIDIA driver, and must be disabled before proceeding……
这是由于Nouveau与Nvidia驱动冲突，需要禁用Nouveau：

#1) 先把nouveau驱动加入黑名单:
echo "blacklist nouveau" >> /etc/modprobe.d/blacklist.conf

#2) 然后使用dracut重新建立initramfs p_w_picpath file:
mv /boot/initramfs-$(uname -r).img /boot/initramfs-$(uname -r).img.bak
dracut -v /boot/initramfs-$(uname -r).img $(uname -r)

#3) 最后重启服务器，然后检查nouveau driver确保没有被加载！
lsmod | grep nouveau

问题4）No package dkms available.
这是由于镜像源依赖找不到对应安装包，请尝试更新镜像源或者更换镜像源：Centos更改镜像源 或者尝试使用以下离线包（此为常规版本，不一定完全匹配）
https://suanpan-public.oss-cn-shanghai.aliyuncs.com/suanpan-installer/gpu-installer.zip

yum -y -e 0 localinstall *.rpm

---

二、配置docker runtime

a）增加docker配置（daemon.json不存在则新建）

vim /etc/docker/daemon.json

{
  "default-runtime": "nvidia",
  "runtimes": {
    "nvidia": {
      "path": "/usr/bin/nvidia-container-runtime",
      "runtimeArgs": []
    }
  }
}

b）然后重新加载配置并重启docker

systemctl daemon-reload && systemctl restart docker

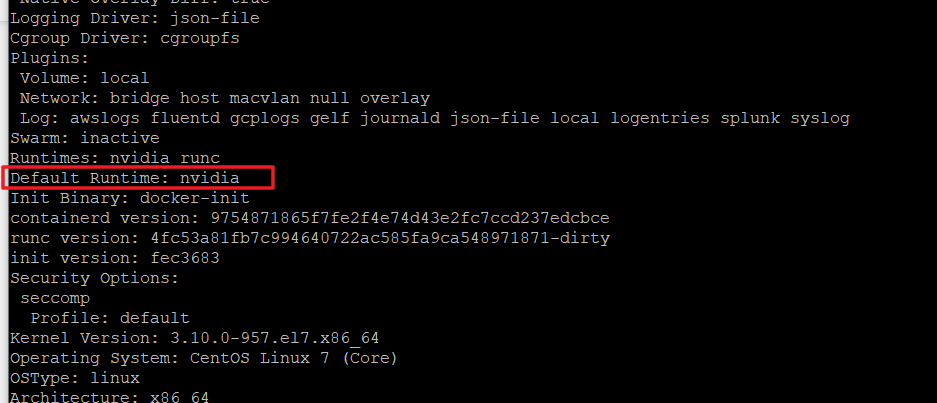

c）执行docker info命令，查看Default Runtime是否已经修改为了nvidia

---

三、检查容器GPU调用是否成功

:~$ docker run -it --rm --gpus all ubuntu nvidia-smi

Unable to find image 'ubuntu:latest' locally
latest: Pulling from library/ubuntu
f476d66f5408: Pull complete
8882c27f669e: Pull complete
d9af21273955: Pull complete
f5029279ec12: Pull complete
Digest: sha256:d26d529daa4d8567167181d9d569f2a85da3c5ecaf539cace2c6223355d69981
Status: Downloaded newer image for ubuntu:latest
Tue May  7 15:52:15 2019
+-----------------------------------------------------------------------------+
| NVIDIA-SMI 390.116                Driver Version: 390.116                   |
|-------------------------------+----------------------+----------------------+
| GPU  Name        Persistence-M| Bus-Id        Disp.A | Volatile Uncorr. ECC |
| Fan  Temp  Perf  Pwr:Usage/Cap|         Memory-Usage | GPU-Util  Compute M. |
|===============================+======================+======================|
|   0  Tesla P4            Off  | 00000000:00:04.0 Off |                    0 |
| N/A   39C    P0    22W /  75W |      0MiB /  7611MiB |      0%      Default |
+-------------------------------+----------------------+----------------------+

+-----------------------------------------------------------------------------+
| Processes:                                                       GPU Memory |
|  GPU       PID   Type   Process name                             Usage      |
|=============================================================================|
|  No running processes found                                                 |
+-----------------------------------------------------------------------------+
