Anylink_mqtt使用方式

如下图所示搭建模板，选择anylink_mqtt组件后，在右面板分别填入所要连接的mqtt broker的ip和port，以及消息publish的topic，再点击部署模板
 image.png 点击CSV上传组件，将anylink导出的点位CSV表格信息上传 点击定时触发组件，关闭定时发送，点击手动发送按钮



配置信息输入​

topic：/at/config
Anylink数采盒子的id为下xml格式数据中的id属性，组件读取id后订阅数据和报警的topic

[60]
<agent n="Agent-1460345" id="1460345" flag="SET-TASKS" port="-1" timezone="UTC" uuid="ffc8777c-49a3-11eb-8ed3-4c3fd318c769" sign="KLPJHd0Y6AUgcYnCo9VTBZvDmN6apcbu3OMeDvz5oaTzkrE+tkACzcCC1RDgsds3JF9IPX6NJH Nr20AegeU7HPmRcN/sTFHTzioNdI0gm8h6YrPs2YbAuupOocNYtAQZGLgC6kVDInusGn7auERr8YJDiP DSQ3l/Vey+bUKV+1k=" version="3.7.1" vpn="1.0.0" ts="1609225428504">
  <model n="ra-model">
    <device n="ra-device" id="1023" ip="127.0.0.1">
      <driver n="T.IDrv.Task:libtremoteplc" config="1">
        <commDataItems>
          <dataItem freq="120000" id="1" n="CSQ" rw="0" report="1" type="a" vtype="" addr="" config=""/>
        </commDataItems>
      </driver>
    </device>
  </model>
  <task>
    <TaskDriver>
      <driver n="T.IDrv.Task:libcontrol" config="10001"/>
    </TaskDriver>
    <TaskDriver>
      <driver n="T.IDrv.Task:libtremoteplc" config="1"/>
    </TaskDriver>
    <TaskDriver>
      <driver n="T.IDrv.Task:libzigbee" config="NULL;115200;8;N;1;0;1;0;0;localhost;10001;6;60;0;10000;3"/>
    </TaskDriver>
    <TaskDriver>
      <driver n="T.IDrv.Task:libkmqtt" config="192.168.7.175;1883;192.168.7.175;1883;60;2;0;1;;;;0;"/>
    </TaskDriver>
  </task>
  <model n="test2" id="5" d="IDrv.Custom:libDModbus" config="tcp;192.168.7.175;502;200;100;20" devicedriver="Modbus-TCP">
    <device n="123" id="4" ip="192.168.1.1" type="test">
      <driver n="IDrv.Custom:libDModbus" config="tcp;192.168.7.175;502;200;100;20" id="6">
        <commDataItems>
          <dataItem id="757" n="a" config="2;3;0;1;int16_t;1;1;1" type="a" rw="1" freq="1000" report="1" alias="1"/>
          <dataItem id="759" n="e" config="1;3;1;1;int16_t;1;0;1" type="a" rw="1" freq="1000" report="1" alias="3"/>
        </commDataItems>
      </driver>
    </device>
  </model>
</agent>

点位信息输入​

topic: /at/id/[31]
Anylink点位信息输入

[31]                            //命令字
{
    "z": 1460345,               //Anylink设备ID
    "y": [{
        "d": 4,                 //当前通道(驱动)ID
        "t": 1609915746465,     //时间戳
        "c": [
            [757, 11203, 1],    //[点位ID，当前值，有效标志位 ]
            [759, 11598, 1]
        ]
    }]
}

csv数据格式

设备驱动,设备ID,设备名称,数据项ID,名称,别名,从站ID,地址,类型,功能码,数据项附加,采集频率,读写,是否变化上传,上报,对齐方式,驱动ID
Modbus-TCP,4,123,757,a,1,2,0,int16_t,3,1,1000,可写,1,上报,小端,6
Modbus-TCP,4,123,759,e,3,1,1,int16_t,3,1,1000,可写,1,上报,大端,6

点位信息输出​

{
    "type": "report",                           //report类型的json数据
    "device_id": 1460345,                       //Anylink数采盒子ID
    "channel_info": [{                          //通道(驱动)信息列表
        "channel_id": 4,                        //通道(驱动)ID
        "timestamp": "2021-01-06 10:30:17",     //时间戳
        "channel_name": "123",                  //通道别名
        "info_list": [{                         //点位信息列表
            "item_id": 757,                     //点位ID号
            "value:": 3439,                     //点位数值
            "status": "good",                   //数据状态
            "driver": "Modbus-TCP",             //驱动名称
            "name": "a",                        //点位名称
            "alias": "1",                       //点位别名
            "slave_id": "2",                    //从站ID
            "address": "0",                     //数据项地址
            "data_type": "int16_t",             //数据项类型
            "function_code": "3"                //功能码
        }, {
            "item_id": 759,
            "value:": 3601,
            "status": "good",
            "driver": "Modbus-TCP",
            "name": "e",
            "alias": "3",
            "slave_id": "1",
            "address": "1",
            "data_type": "int16_t",
            "function_code": "3"
        }]
    }]
}



报警信息输入​

topic: /at/id/[41]
Anylink报警信息输入

[41]
<Alarms>
  <alarm aid="1460345" t="1609928923075" b="4" n="alarm1" c="y" e="8" r="38" a="" d="757" v="3333.000000" p="1"><![CDATA[error1,[1609928923,3333.000000]]]></alarm>
  <alarm aid="1460345" t="1609928923098" b="4" n="alarm2" c="y" e="12" r="39" a="" d="759" v="3494.000000" p="1"><![CDATA[error2,[1609928923,3494.000000]]]></alarm>
</Alarms>

报警信息输出​

{
    "type": "alarm",                            //alarm类型的json数据
    "alarm_list": [{                            //报警信息列表
        "device_id": "1460345",                 //Anylink数采盒子ID
        "timestamp": "2021-01-06 10:34:57",     //时间戳
        "item_id": "757",                       //点位ID号
        "value": "3765.000000",                 //点位数值
        "alarm_name": "alarm1",                 //报警信息名
        "alarm_description": "error1"           //报警信息描述
    }, {
        "device_id": "1460345",
        "timestamp": "2021-01-06 10:34:58",
        "item_id": "759",
        "value": "3926.000000",
        "alarm_name": "alarm2",
        "alarm_description": "error2"
    }]
}

kepserver_mqtt使用方式

如下图所示搭建模板，选择kepserver_mqtt组件后，在右面板分别填入所要连接的mqtt broker的ip和port，以及订阅和发表消息的topic，再点击部署模板





kepserver_mqtt组件协议数据格式​

点位信息输入​

{
    "timestamp": 1609932680134,         //时间戳
    "values": [{
        "id": "123.abc.bbb",            //点位名(ID)
        "v": 6314,                      //点位数值
        "q": true,                      //数据质量
        "t": 1609932679914              //时间戳
    }, {
        "id": "通道 1.设备 2.222",
        "v": 6314,
        "q": true,
        "t": 1609932679914
    }, {
        "id": "通道 1.设备 2.333",
        "v": 0,
        "q": true,
        "t": 1609932679914
    }, {
        "id": "通道 2.设备 1.111",
        "v": 7646,
        "q": true,
        "t": 1609932679935
    }]
}

点位信息输出
​

[{
    "name": "123.abc.bbb",                  //点位名(ID)
    "value": 6863,                          //点位数值
    "timestamp": "2021-01-06 11:40:28",     //时间戳
    "quality": true                         //数据质量
}, {
    "name": "通道 1.设备 2.222",
    "value": 6863,
    "timestamp": "2021-01-06 11:40:28",
    "quality": true
}, {
    "name": "通道 1.设备 2.333",
    "value": 0,
    "timestamp": "2021-01-06 11:40:28",
    "quality": true
}, {
    "name": "通道 2.设备 1.111",
    "value": 8283,
    "timestamp": "2021-01-06 11:40:28",
    "quality": true
}]

**

fanbox_mqtt使用方式

如下图所示搭建模板，选择fanbox_mqtt组件后，在右面板分别填入所要连接的mqtt broker的ip和port，以及订阅和发表消息的topic，再点击部署模板build.png

fanbox_mqtt组件协议数据格式​

点位信息输入​

{
    "data": [{
        "name": "4",                            //点位名
        "timestamp": 1611112854,    //时间戳
        "value": 12315                      //点位数值
    }, {
        "name": "3",
        "timestamp": 1611112854,
        "value": 14668
    }, {
        "name": "2",
        "timestamp": 1611112854,
        "value": 14449
    }, {
        "name": "1",
        "timestamp": 1611112854,
        "value": 15160
    }]
}

点位信息输出​

[{
    "name": "4",                                                //点位名
    "value": 12630,                                         //点位数值
    "timestamp": "2021-01-20 03:23:33"  //时间戳
}, {
    "name": "3",
    "value": 14983,
    "timestamp": "2021-01-20 03:23:33"
}, {
    "name": "2",
    "value": 14764,
    "timestamp": "2021-01-20 03:23:33"
}, {
    "name": "1",
    "value": 15475,
    "timestamp": "2021-01-20 03:23:33"
}]

leapiot_mqtt使用方式

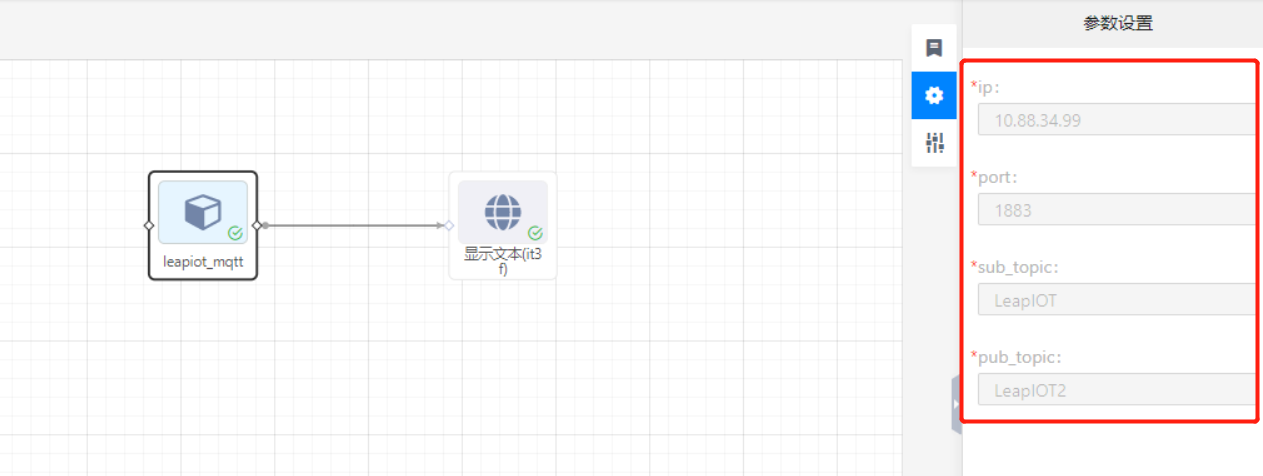

如下图所示搭建模板，选择leapiot_mqtt组件后，在右面板分别填入所要连接的mqtt broker的ip和port，以及订阅和发表消息的topic，再点击部署模板build.png

leapiot_mqtt组件协议数据格式​

点位信息输入​

[{
    "metadata": {
        "path": "/lxz/11/111",      //数据来源目录
        "access": 2,
        "displayName": "",
        "dataType": "Word"              //数据类型
    },
    "name": "b",                                    //点位名（ID）
    "timestamp": 1612342433466,     //时间戳
    "value": 2502                                   //点位数值
}, {
    "metadata": {
        "path": "/lxz/11/111",
        "access": 2,
        "displayName": "",
        "dataType": "Word"
    },
    "name": "a",
    "timestamp": 1612342433466,
    "value": 9396
}]

点位信息输出​

[{
    "name": "b",                                                //点位名（ID）
    "value": 2502,                                          //点位数值
    "timestamp": "2021-02-03 09:54:02"  //时间戳
}, {
    "name": "a",
    "value": 13001,
    "timestamp": "2021-02-03 09:54:02"
}]
